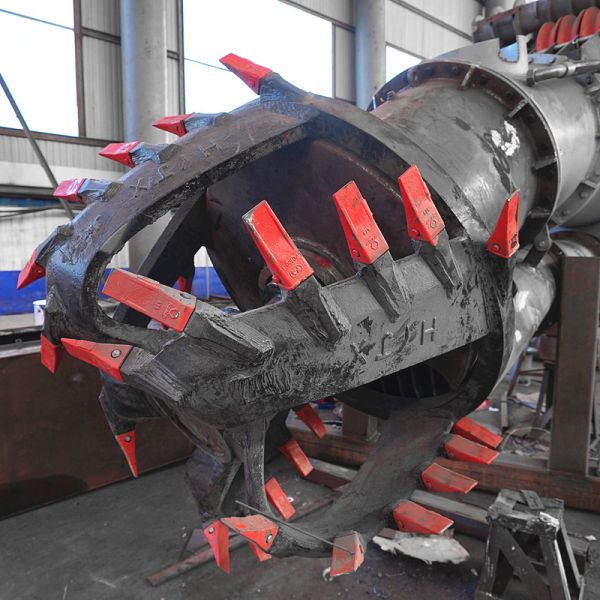

16 Inch Diesel Engine Hydraulic Cutter Suction Dredger with 350mm Discharge Pipe Diameter

Model NO. : QHCSD-146

Slot Type : CTD

Customized : Customized

Condition : New

Warranty : 1 Year

After-sales Service : Lifelong

Total Length : 29m

Total Width : 7.5m

Total Depth : 2.0m

Total Weight : 145t

Main Engine Brand/Power : Cumins /746kw

Auxiliary Engine Power : 224kw

Pump Size : 350ND

Head : 45m

Dredging Depth : 13m

Discharge Distance : 1500m

Discharge Pipe Diameter : 350mm

Cutter Head Power : 70kw

Anchor Boom Length : 12m

Cutter Head Diameter : 1450mm

Total Fuel Consumption : 111kw

Transport Package : in Bulk or Container

Specification : Capacity 400m3/h

Trademark : Set Sail

Origin : China

HS Code : 895100000

Supply Ability : 2500set /Year

Package Size : 3600.00cm * 700.00cm * 200.00cm

Package Gross Weight : 230000.000kg

Type : Cutter Suction Dredger

Power Type : Diesel

Cyclone Type : Dense Medium Cyclone

Samples : US$ 10000/Set 1 Set(Min.Order) |

Customization : Available | Customized Request

Shipping Cost : about shipping cost and estimated delivery time.

: Initial Payment Full Payment

Currency : US$

Return&refunds : You can apply for a refund up to 30 days after receipt of the products.

Place of Origin : China

Certification : ISO 9000, ISO 14001，ISO 20000, ISO 14064, LEED, ISO 10012, ISO 17025

MOQ : 1 set

Price : Negotiable

Packaging Details : Container

Delivery Time : Peak Season Lead Time: 1-3 months, Off Season Lead Time: one month

Payment Terms : LC, T/T, D/P, PayPal, Western Union, Small-amount payment, Money Gram, Cash

Contact Now

Diesel engine hydraulic 16 inch cutter suction dredger

1.16 inch basic parameter:

Dredging depth	13m
Capacity	500m3
Discharge distance	1500m
Draft	1.4m
Total weight	145t
Total length	29m
Total width	7.5m
Total hight	2m
Main pump size	350ND
Water flow	2000m3
Head diameter	1450mm
Speed	11/22/33
Discharge distance pipe diameter	350mm
Main engine power/brand	746kw
Auxiliary engine power /brand	224kw
Pump Gearbox brand	Fada
Speed ratio	2:1
Hydraulic gearbox brand	Fada
Cutter head diameter	1450mm
Cutter head power	70kw
Spud diameter /wall thickness	425mm*20mm
Spud Length	17m
Spud weight	7.2t
swing winch wire rope diameter	22mm
Lifting winch wire rope diameter	24mm
trolley moveing distance	2.5m-4m
Oil cylinder diameter	160mm
Hydraulic system brand	Rexroth/Huade
Anchor weight	600kg

The Cutter Suction Dredger of steel construction, the non self-propelled, dismountable type, is able to berth and dredge at any waters both in the coastal area and inland rivers, with similar conditions to that in navigation area "A" or below the "A"-line specified in code for inland river steel engineering ship manufacture of P. R. China.

The dredger can be used to excavate and transport cohesive sediment below the class III specified in code for dredging engineering construction technique issued by Ministry of Water Resources(MWR) of P. R. China.

The hull consists of three pontoons, one main pontoon (engine room), two side pontoons. All parts are dimensioned to allow the dredger to be transported by road, rail or water. The dredger is equipped with a rapid connection-disconnection system for the pontoons, achieved using bolts at deck level, hull front and rear , and hooks at the bottom. Further salient features of the dredger are the dredger is powered by a Marine engine. the main engine is to drive the dredge pump and hydraulic pump. Hydraulic pump will in turn power other all equipments such as cutter, swing and ladder winches, and the spud rams etc.
The hull is of all welded, steel construction to give the dredger the necessary strength required for dredging operations. The side pontoons are connected to the main pontoon by means of bolts.
The hull steel plate used is CCSB (shipbuilding steel plate ) .
2.Product shows :

16 Inch Diesel Engine Hydraulic Cutter Suction Dredger with 350mm Discharge Pipe Diameter

3.Product detailed shows :

4.Cutter suction dredger feature:

Diesel engine	Normally cumins on dredger Cater .Weichai Yuchai and other can available
Cutter head	Generally drive power hydraulic . Electric power cutter head can offer
Generator set	Cumins brand generator set Weichai brand others can available
Hydraulic system	Hydraulic control system from Germany Rexroth
PLC system	PLC adopts advanced system from Germany Siemens

5.Workshop:

6.Function of cutter suction dredge :

1	Cutter suction dredger is widely used in the river lake .sea .inland waterway and reservoir so on for dredging project
2.	Cutter suction dredger is helpful for the port construction and match the wash sand equipment for project
3.	Cutter suction dredger can match the mining machinery to get the gold and diamond etc.
4.	Cutter suction dredger is suitable for all kinds of working situation , especially river with the high sand content and large project
5.	Design of cutter suction dredger can reach the more dredger depth . we can make the design according to the dredging depth working site.

7. Why choose Set Sail dredger :

A wide range of use applications
High efficiency, large output, far pump distance, low fuel consumption
Full hydraulic control with Rexroth, Vickers
Siemens PLC operation with the operation convenience
Engine choice from Weicchai, Cumins and more.
The modular design enables fast assembly with Set Sail seniors engineers
Dredger components available in factories to allow short delivery times
Control the working process of dredging and pumping, delivering dredged materials. lower cost;
Follow manufacture guideline: CCS-ZC standard
CE certificates acquired to prove high quality
Western Dredge brand parts, easy to find globally
Can choose reliable Chinese brand parts to lower costs
Gain access to our sales team, design team, manufacture team 24/7
Lifetime Technical Assistance
Optional equipment is available such as Spud carriage, anchor boom.

8.Factory introduce :

Set Sail dredger factory covers an area of 1500 acres with more than 200 employees.

Factory has manufacture experience more than 20 years.

More than 50 certificated engineers and technicians.

We have certification and patent more than 50 item. It contains ISO CE etc.

Set Sail dredger is sold more than 80 countries .

We have full range of dredging equipment for CSD dredger . jet suction dredger,.Wheel bucket Dredger. Bucket chain dredger. gold mining equipment. work boat. Tailing suction dredger and sand transportation boat etc.
